GearUP AVP-63 Automatic Voltage Protector-220V

GearUP AVP-63 Automatic Voltage Protector-220V

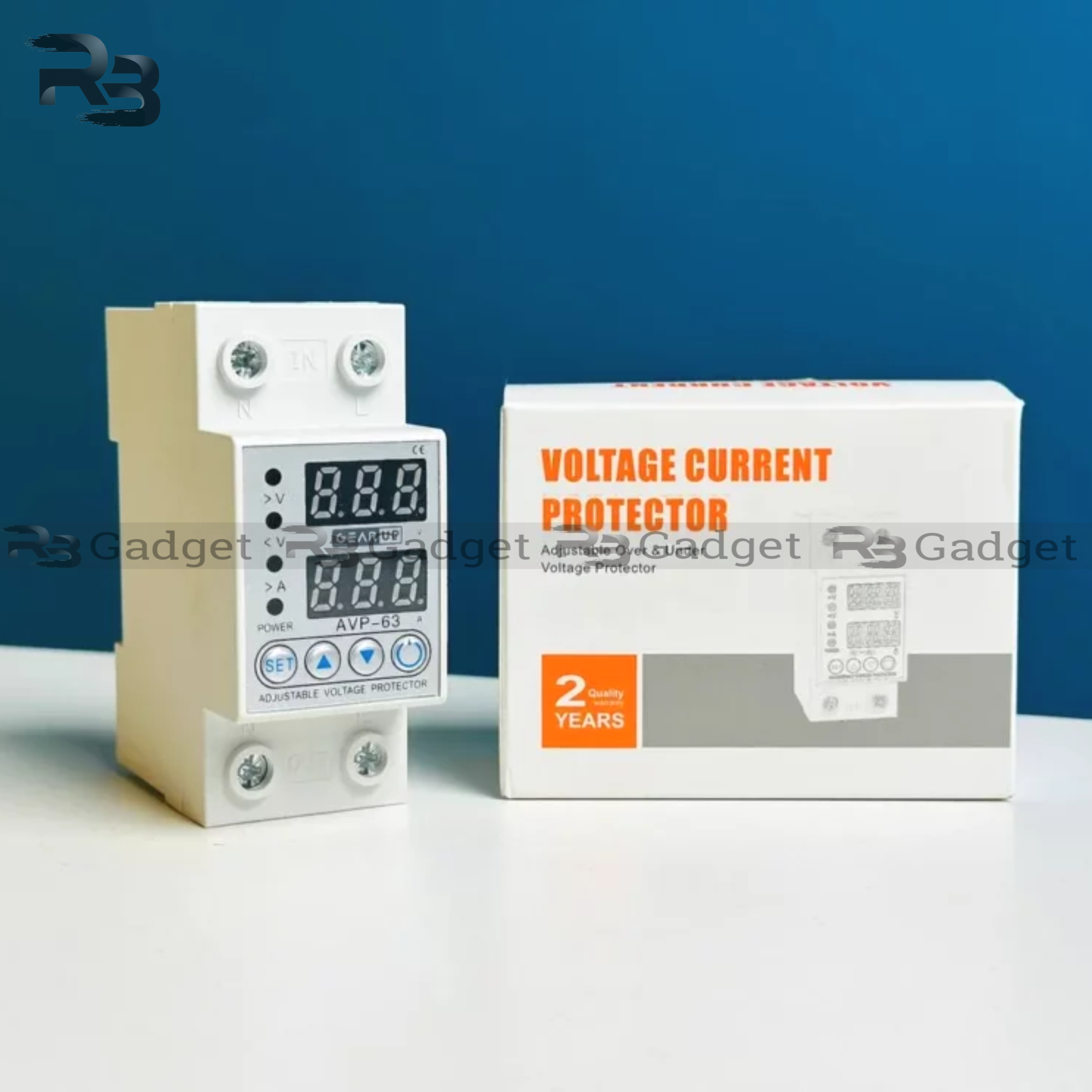

  • GearUP AVP-63 Automatic Voltage Protector-220V_img_0
  • GearUP AVP-63 Automatic Voltage Protector-220V_img_1

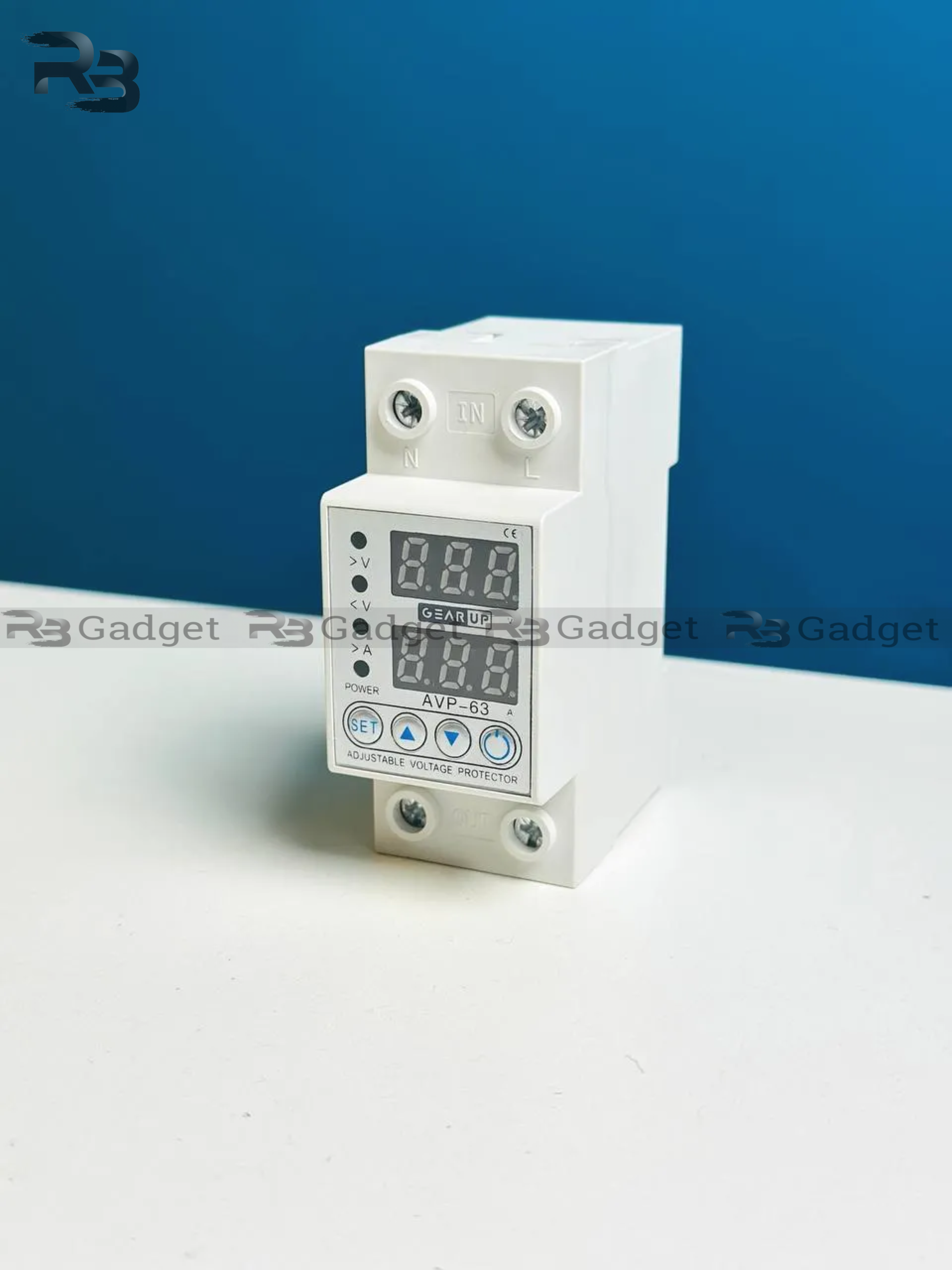

  • GearUP AVP-63 Automatic Voltage Protector-220V_img_2

GearUP AVP-63 Automatic Voltage Protector-220V

price

850 BDT1,200 BDTSave 350 BDT
1

Details:

  • Brand: GearUP
  • Model: AVP-63
  • Power Supply : AC: 320V / DC: 80–300V
  • Warranty
    1 year (Burn and physical damage not applicable)

GearUP AVP-63 Automatic Voltage Protector in Bangladesh

Get The GearUP AVP-63 Automatic Voltage Protector-220V at RBGADGET.COM Enjoy top quality and unbeatable prices with the best customer service in Bangladesh



Key Functions

  1. Protection Features
  Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).  Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).  Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).  Automatic Recovery: Restores power after fault conditions (adjustable via P-15).  Fast Power-Down: Emergency cutoff (enabled via P-14).

  1. Monitoring & Display
  Real-time voltage display (AC/DC).  Real-time current display (AC only; DC mode shows voltage only).  Indicators for faults (>V, A) and normal operation (POWER).
  1. Programmable Settings
  Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).  Password protection (P-17) to prevent unauthorized changes.



C. Calibration

  • Voltage: Adjust via P-8 (±10%).
  • Current: Calibrate with P-12 (±10%).
  • Frequency (AC only): Fine-tune with P-13 (±2.5%).

D. Safety & Recovery

  • Manual Reset: Required if auto-recovery (P-15) is disabled.
  • Event Logging: Overcurrent counts (P-11) track fault history.



Usage Notes

  • DC Mode: Current display disabled; only voltage monitored.
  • Energy Saving: Enable P-16 to reduce idle power consumption.
  • Altitude Warning: Performance may degrade above 2000m.

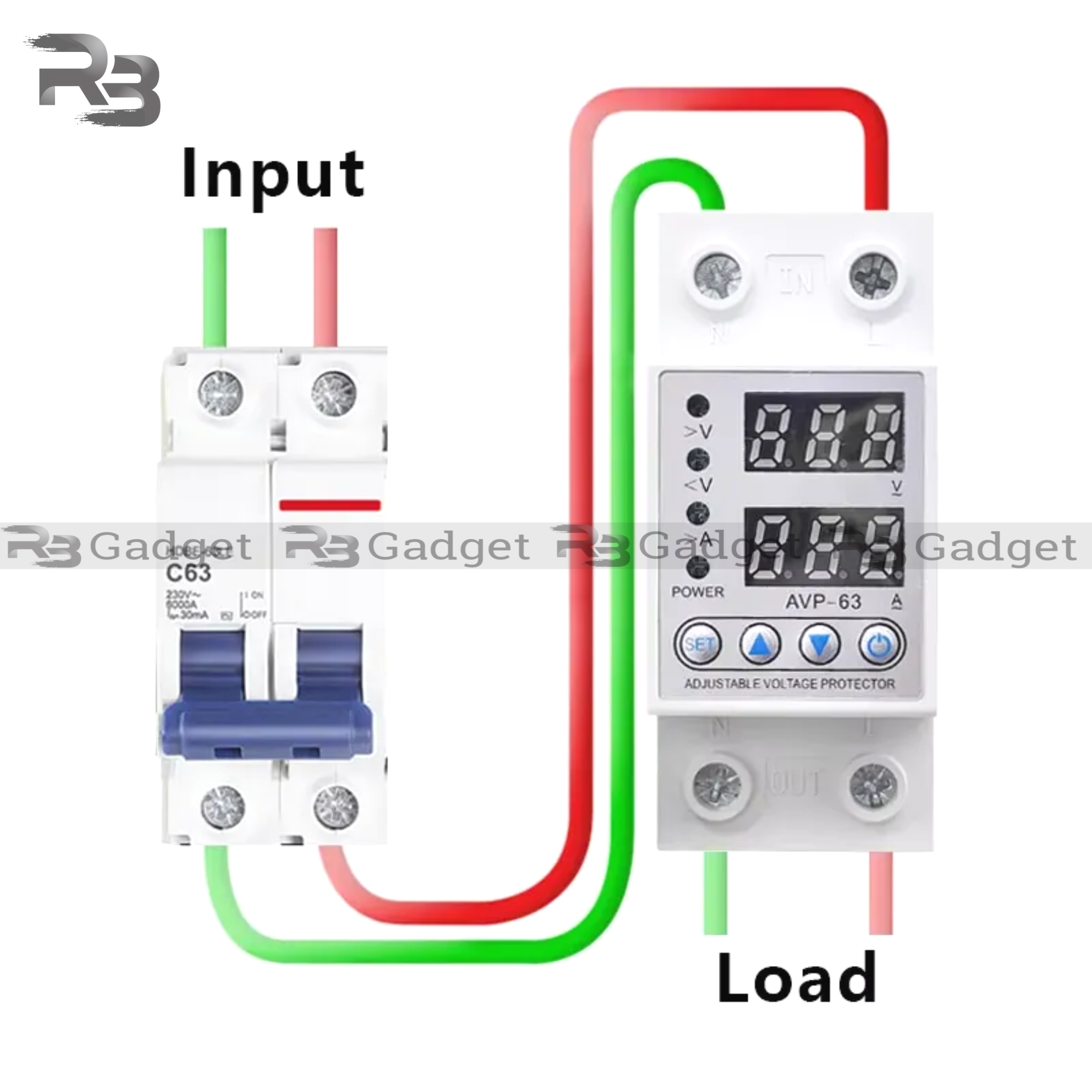

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
